| Specifications
| Product Glance | |

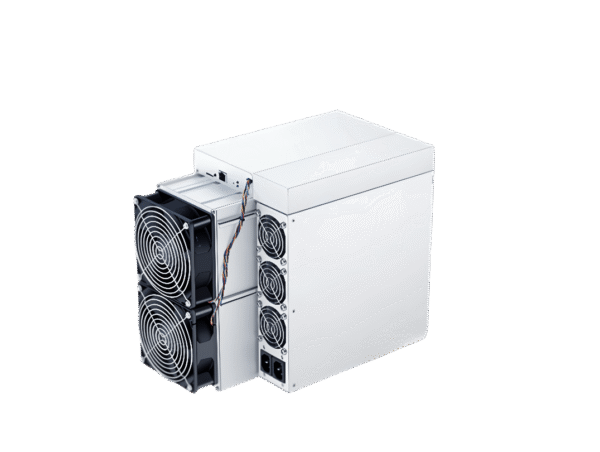

| Model | S19j XP |
| Algorithm | Cryptocurrency | SHA256 | BTC/BCH/BSV |
| Hashrate, TH/s | 151 |
| Power on wall @25°C, Watt | 3247 ±10% |
| Power efficiency on wall @25°C, J/TH | 21.5 ±5% |
| Detailed Characteristics | |
| Power Supply | |
| Power supply AC Input voltage, Volt(1-1) | 220~277 |
| Power supply AC Input Frequency Range, Hz | 47~63 |
| Power supply AC Input current, Amp(1-2) | 20(1-3) |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Miner Size (Length*Width*Height, w/o package),mm(2-1) | 400*195*290 |
| Miner Size (Length*Width*Height, with package),mm | 570*316*430 |
| Net weight, kg(2-2) | 14.9 |
| Gross weight, kg(2-2) | 16.5 |
| Environment Requirements | |
| Operation temperature,°C | 0~40 |
| Storage temperature,°C | -20~70 |
| Operation humidity(non-condensing) , RH | 20~80% |
| Operation altitude, m(3-1) | ≤2000 |
NOTE:
1.To prevent the spread of virus in the firmware, which can cause damage to the ANTMINER S19 series, the setting function of “Secure Boot” has been switched on and the “Root Authority” function has been disabled.
2.If the user fails to use the product in accordance with the given instructions, specifications, and conditions provided, or change the function setting without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
(1-1) Caution: Wrong input voltage may probably cause miner damaged
(1-2) Max condition: temperature 40°C, altitude 0m
(1-3) Two AC input wires, 10A per wire
(2-1) Including PSU size
(2-2) Including PSU weight
(3-1) When the miner is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1℃ for every increase of 300m
| Purchasing Guidelines
1. If the Hashrate of the final delivered mining machine is lower than 151T, the difference will be refunded according to $/T.
2. The product needs full payment.
3. The shipping costs, customs charges, and taxes(if any) are not included in the retail price shown above.
4. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
5. The pictures shown are for reference only; the final shipment version shall prevail.
